11/18/24 Update.

Any orders that have been placed are just waiting for the new V2 design to arrive.   We made some small changes to the manufactering process to offer a MUCH higher quality part with tighter clearances.

Expected to ship at the end of the month.





  • 304 Stainless Steel
  • Upgraded Hardness Bolts
  • Pinned to the slots to offer secondary load point
  • Does not rely on the weak OEM Rail system
  • Splits the load to both sides of swingarm plate which removes the off axis loading on axle.
  • These are welded stainless steel, so strong that we have rode and tested these with NO Axle nuts. Without failure.
  • Easy to install, you do not need to remove the wheel to install.
  • Install takes around 5-10 minutes.
  • Comes with detailed instructions
  • One set works with Original motor, or down the road when you upgrade to a larger power motor.
  • Tested for over a year before releasing, and now a year of sales with no issues axle failures.
  • Built by a rider, for the rider!
  • Black Wrinkle powder coat which looks great and is tough.
  • Grade 12.9 Bolts are included which are also a upgrade from stock and less prone to stripping out.





Over 100 Kits sold now, and not a single broken axle reported.



We now have 10 speed kit variants in stock, if you run a multi gear setup on the rear put this in the notes as we have a special chain side plate that allows it to clear.

We now have riders across the globe using our plates!  From Toyko, Poland, Hawaii, NY to CA.  If you have a set submit a photo to get into our rider gallery!


Click here for a --->Video on the plates
Click here to see the Plates getting sealed and shipped with all needed hardware.

The Stock motor , 3k and 5k plates ( Same plate) will work with all motors with 10MM axle flats ( most common)

So if you purchase a set and upgrade the motor later you are good to go, We have confirmed fitment on the NBpower motors, the QS205, QS273.

This is a part that we have been working on and testing on our personal bike for over a year.  If you are familiar with our videos online chances are you have seen our S73 RX.  It runs a ASI Bac 8000 Controller at 800 Phase amps and 300 Battery amps.



Click here for a Dyno video of plates holding over 20HP and 287 Ft Lb of TQ.

0-60 Time in just 6 Seconds, meaning we have put them through some torture over this time.

How have they held up?  Flawlessly, we are at the point where its no longer a concern when riding.

What exactly is it? Do I need it?

Please watch our video here for why you need it even on a stock bike.



From the factory only the brake slide is truly clamped and even then its done with a thin cheap tq washer.  If you have ever had to change a tube or tire, you are aware how quickly the washers get damaged and chewed up from the axle turning. Heck at times they are almost impossible to get off.  Know this is what you are trusting to keep your expensive motor in place and secure.

Did you upgrade to a larger controller? It's only a matter of time.



As the axle torsions on one side, it weakens the axle.  It's only a matter of time before they snap. Which can lead to an accident, injury and being stranded as well as a 500.00+ motor replacement.



While this plate cannot stop this from ever happening it greatly increases the chances of it not, it will not be able to rotate in this drop out. At the axle you are upgraded to 1/4 " of stainless steel keyway for your axle.



What it includes:



2 Dropout plates.

4 Longer Allen Bolts.





We make different version of this depending on your motor.  So if you have a custom motor installed reach out first to ensure we get you the correct drop outs.

Please watch the video linked above for more information.



This are hand made in Florida, and support us to make more products in the future.







****  Stock motor and 3000/5000W upgrade have the recessed hole for the nut for a short axle. 1/4" thick.

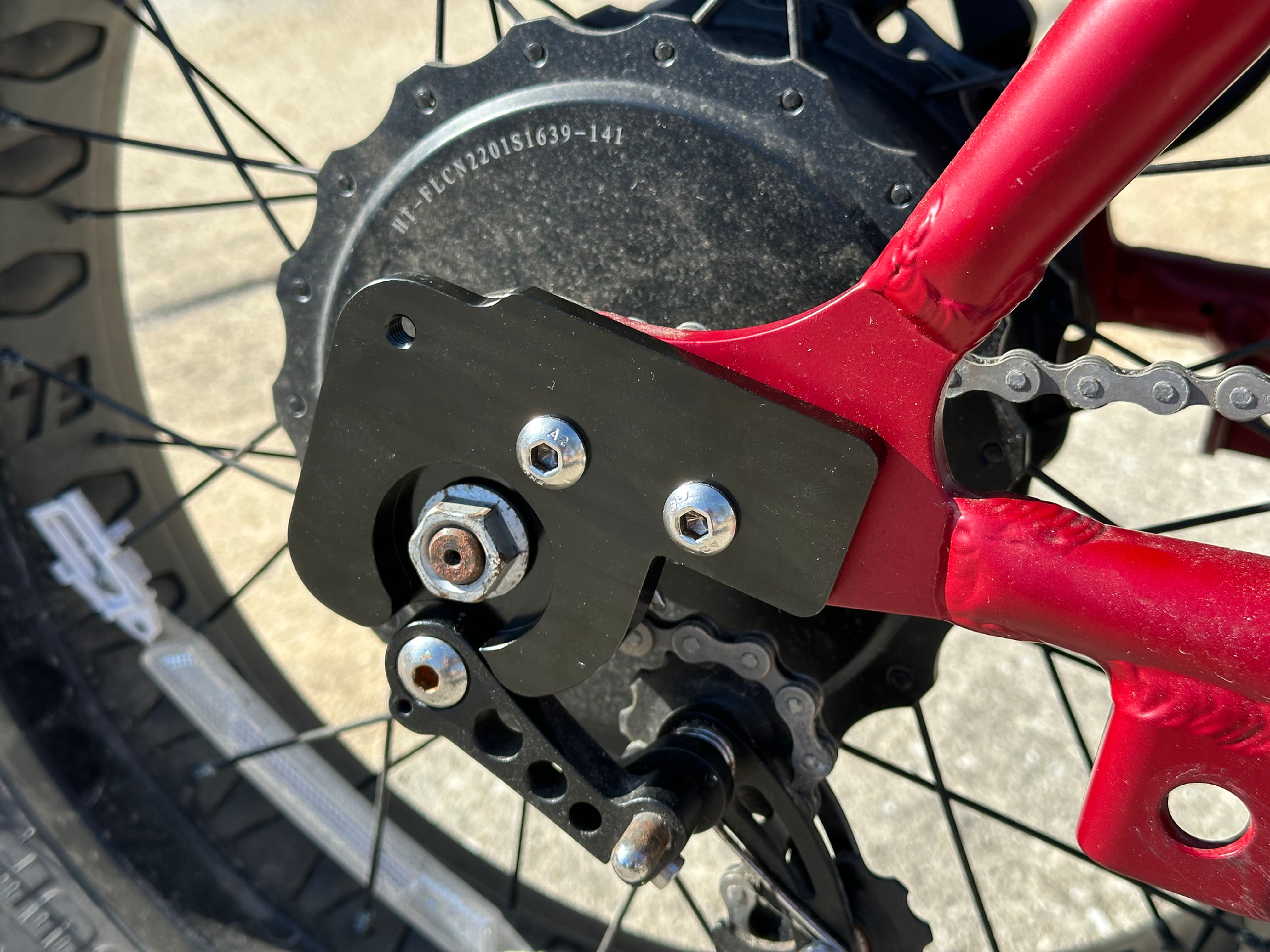

S73 ZX/S2/R/RX Stainless Steel Torque Arms, Dropout Upgrades

$165.00Price
7th Batch.
